Adjustable Film Applicator with Magnetic Suction, 2µm Accuracy for Printing and Paint Coating Applications

The Thin Film Coater is engineered for precise and uniform coating applications across various materials. Constructed with a durable aluminum alloy frame and a high-quality stainless steel blade, it ensures long-lasting performance and resistance to corrosion. This coater offers an adjustable film thickness range from 0 to 3500μm, with fine-tuning capabilities in 10μm increments using the squeegee adjustment mechanism. It maintains an accuracy of ±2μm, providing reliable results for laboratory, industrial, or research settings. Available in multiple widths including 55mm, 100mm, 150mm, 200mm, and 300mm to accommodate diverse project needs. The package includes one film coater and one storage case for convenient organization and protection. Ideal for tasks requiring consistent film deposition, this tool supports applications in electronics, optics, and material science without the use of trademarked terms or promotional language.

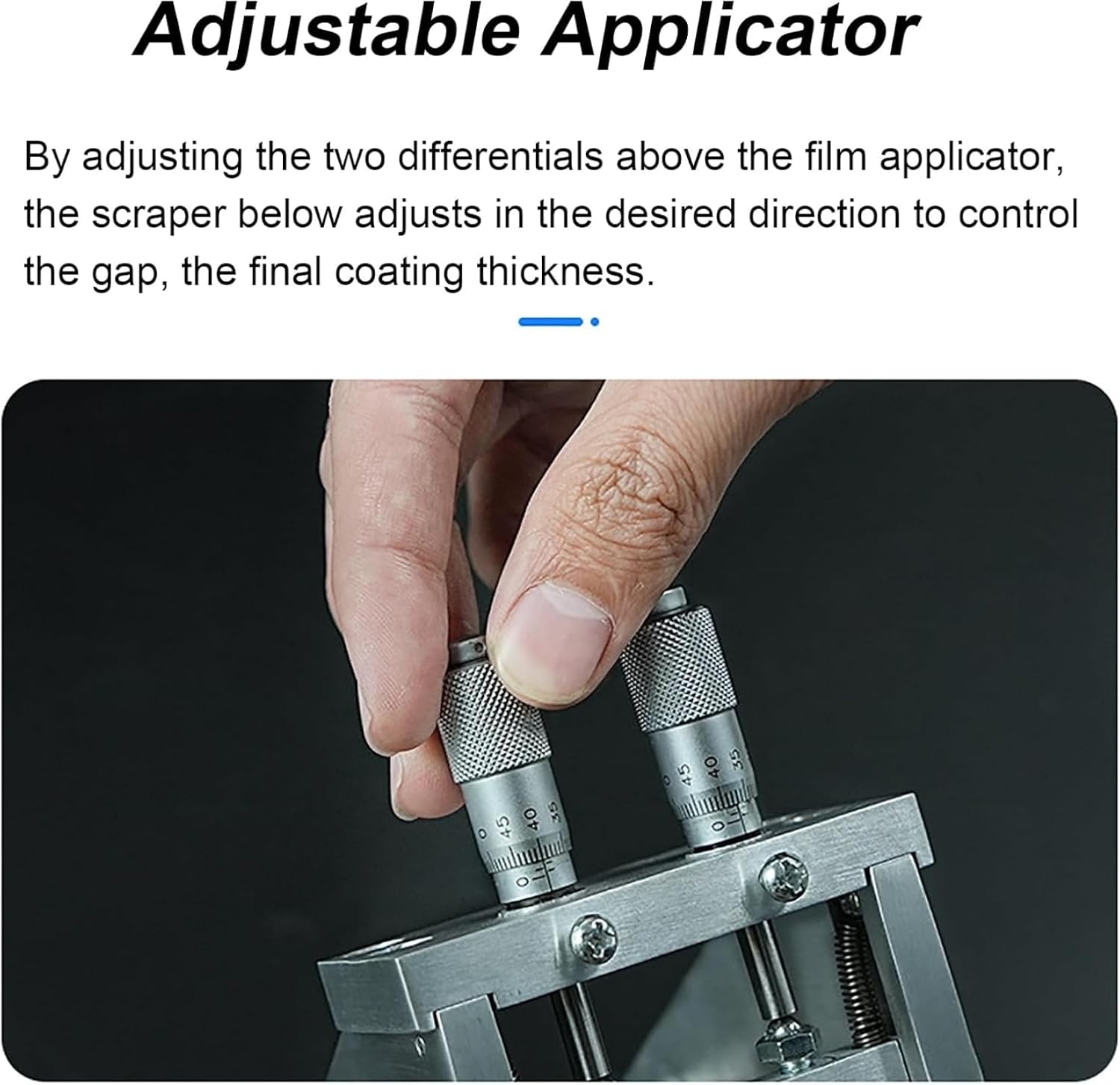

• Adjustable applicator design: Features an innovative design allowing precise vertical adjustment of the scraper blade by modifying two differential gauges above the application area to control the final coating thickness.
• Coating thickness options: Available in film widths of 55mm, 100mm, 150mm, 200mm, and 300mm, with a thickness range of 0 to 3500μm and blade gap adjustable in 10-micron increments for precise application.
• High-precision film control: Equipped with a high-precision differential gauge to ensure accurate control of film thickness, with an accuracy of ±2μm for a smooth, even coating surface and reduced risk of unevenness.
• Durable material construction: Frame made of high-quality aluminum alloy for durability; scraper blade constructed from stainless steel for rust and deformation resistance, featuring a magnetic mount for easy removal and cleaning.
• Versatile application uses: Primarily used for preparing film samples of various materials, such as coatings, inks, paints, and slurries, ideal for evaluating sample coverage, assessing color, or preparing sample plates.
